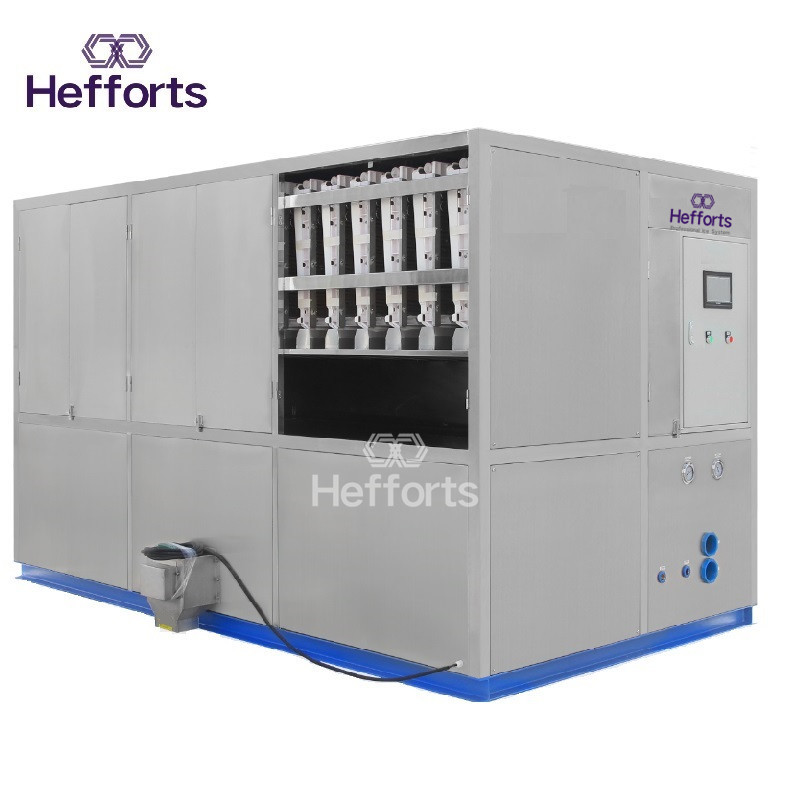

Model# :   FB-5T

Description : 5 tons motivated cube ice machine

Ice Capacity : 5000kgs per 24 hours

Ice Shape : square cube ice machine

Ice Size : 22*22*22mm  ( 29*29*22 & 38*38*22MM available , the same price)

Cooling : water cooling

Compressor : Bitzer Germany ( or RefComp Italy)

Refrigrant : R404A/R507

Dimension : 4782*1740*2090MM

Weight : 3000kgs

Power supply : 380V/50HZ/3P

Water temperature : 21℃

Ambient Temperature : 25℃

Condensing Temperature : 40℃

Construction : please see the attached pictures for more information .

Features - Hefforts water cooling Cube ice machine

1. Rate of capacity is above 95% in Summer season , high performance ( the ambient temperature is 20 degree C, the maximium capacity is up to 130%).

2. The ambient temperature is less than 23degree C , consumpution is 70 to 80KWH. Saving energy .

3. PLC system control , intellegently management of the cube ice machine . Input water , making ice, ice dropping , ice transfer automatically by the system . Self - adjudgement in accordance with the surrounding , the thickness of ice automatically adjust .

4. Full stainless steel 304 + special structure / design , easy maintaince and clean . Qualified by Europe standard .

5. Precise accossary to ensure the long life span and stable performance .
