easy to clean and wash stainless steel automatic 3tons per day ice cube maker
Five Advantages Of Products
- Fully Europe CE standard and design
- Self-design, Self-production, Optimize every processing works, make our machine has perfect performance.
- Low consumption and high precision
- Strictly and carefully choice of the components to create the maximum commodity value to the customer by the ideal performance as well as the lowest cost.
- All the components are adopted from professional suppliers, Guarantee excellent efficiency and stable running.
Product Details
Model: FB-3T
Description : 3 tons motivated cube ice machine
Ice Capacity : 3000kgs per 24 hours , 125kgs per hour , 42bags can be packed if 3kgs per bag .
Ice mould / evaporator : 12pcs
Ice Freezing time : 18 to 22 minutes / circle, 48kgs per circle.
For the ice mould / evaporator : 12pcs for 3tons cube ice machine , it is 12pcs * 19*20 = 4560 cubes per shift . There are 3 shifts per hour , 13680cubes per hour .
Ice Shape : square cube ice machine
Ice Size : 22*22*22mm or 29*29*22mm
Cooling : WATER cooling
Compressor : Bitzer Germany
Refrigrant : R404A
Dimension : 1978*1640*1760MM
Weight : 1350kgs
Power supply : 380V/ 50HZ /3P
Semi-automatically packing system
Water temperature : 21℃
Ambient Temperature : 25℃
Condensing Temperature : 40℃

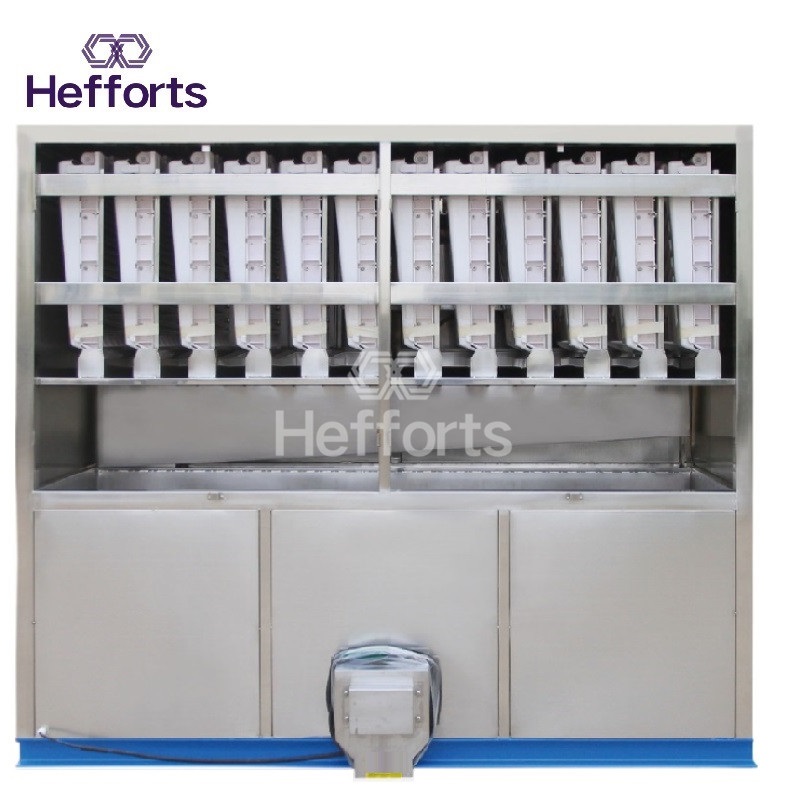

Construction : please see the attached pictures for more information .
The complete set of the water cooling type cube ice machine has included the ice making section, refrigeration unit ,ice conveyor and semi-packing petal switch for the ice packing + cooling tower .
Features:
-Automatic operation: we adopt Siemens PLC controller for 3tons cube ice machine, self-adjustment for ice thickness, self-adaptation for ambient temperature; automatic water supplying , ice freeing and ice harvest, which makes the high efficiency of the machine. And it has touch screen for easy and convenient operation.
-Food Grade standard materials:We adopt food-grade stainless steel SUS 304 for the whole machine,it could greatly extend the machine's working lifespan.Normally the lifespan is 8-10 years without any wrong operation by manual.Special designed water channel and ice discharge outlet,convenient automatic cleaning function,so that the ice is to be sanitary,crystal and transparent.One of the most important point is to use purified water.
- 2 types of ice cube machine in our factory: one is 22*22*22mm which needs 20 minutes to be frozen well; the other is 29*29*22mm which needs 23 minutes to be frozen well,there is no difference with the price.
- Semi - automatically ice packing system
It is so convenient to pack the ice into the polybag . It looks intelligent and fast control by petal swift .
Ice conveyor ( ice dispenser) to avoid the congelation of the ice cubes .
