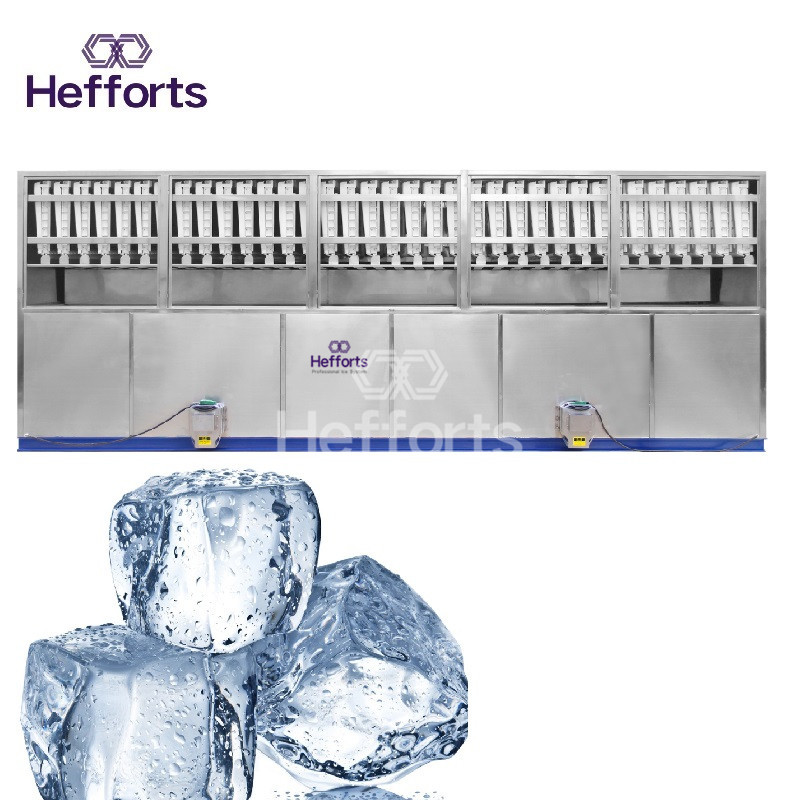

easy to clean and wash stainless steel automatic large capacity cube ice machine with CE qualification


Keywords :

largecube ice machine / 10tons per day cube ice machine / commercial ice making plant


  • Hits : 72
  • Company : Guangzhou Hefforts Refrigeration Equipment Co.,Ltd.
  • Telephone : +86 18320735958
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Fully Europe CE standard and design
  • Internally-scraping blade, safe and save energy consumption and quickening temperature Cooling.
  • Low consumption and high precision
  • Strictly and carefully choice of the components to create the maximum commodity value to the customer by the ideal performance as well as the lowest cost.
  • Innovative design , professional production control

Product Details


Model# :   FB-10T

Description : 10 tons motivated cube ice machine

Ice Capacity : 10000kgs per 24 hours



Ice Shape : square cube ice machine

Ice Size : 22*22*22mm  ( 29*29*22 & 38*38*22MM available , the same price)

Cooling : water cooling

Compressor : Bitzer Germany ( or RefComp Italy)

Refrigrant : R404A/R507



Dimension : 7782*1740*2090MM

Weight : 5500kgs





Power supply : 380V/50HZ/3P

Water temperature : 21℃

Ambient Temperature : 25℃

Condensing Temperature : 40℃

Construction : please see the attached pictures for more information .





2 types of ice cube size:

 22mm*22mm*22mm which needs 20 minutes to be frozen well;

29mm*29mm*22mm which needs 23 minutes to be frozen well


this machine comes with an ice bin and this bin adopts with screw conveyor, ice outlet and switch pedal. This complete design is matching with packing system. See, when the ice frozen, it will falling down into the ice bin directly, you just need to step on the switch pedal then ice will coming out via screw conveyor. Then you need to put the plastic bags under the ice outlet and then seal it by sealing machine. It's suitable for commercial business and not complicate to control





Features :

1.large capacity

* Multiple evaporators works at the same time . The ice freezing time is 18 to 20minutes.

* The ice bin with ice dispenser and conveying ice . The capacity for ice bin is more large to support automatically production .



2. Low Power consumption

* For one ton of ice making , only need 1.1tons of water and 70 to 80kwh of electricity .



3. Automatic Operation

* You just need connect the water , and turn on the power , the cube ice machine can working by itself for ice freezing, ice dropping , ice dispenser , semi-automatic ice transfering to pack by the petal swift .

* Screw conveyor ot transfer the ice to save the labour force

* PLC monitor to do easy examination , touch screen

* It is easy to set up - turn on and turn off .



4. Stable performance

* Precise , Premium level components &accessories are world first class brand to ensure the well matching with the refrigeration function . All of them meet the european union standard .

* More than 13 years manufacturing experience of ice machine + 13000 + sets of ice machine testing and using records and summary

* Accumulation of the marketing feedbacks and suggestion

* Provide 7/24 service



5. Clean and sanitary

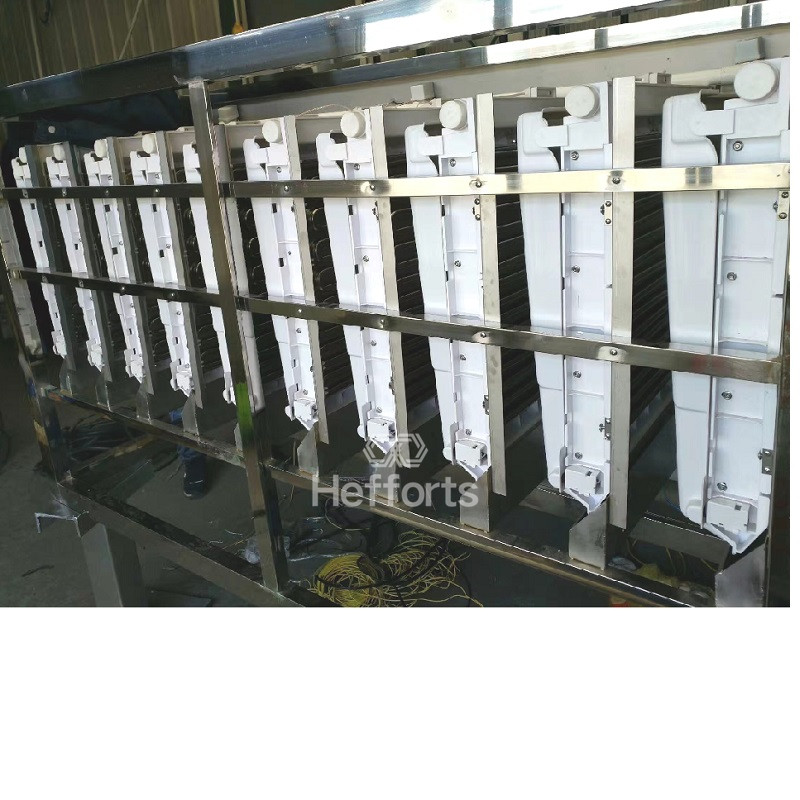

* Pure copper nickel plated ice mould / evaporator

* 0.5mm thick stainless steel 304 for the surface panel to ensure the easy clean

* The frame is also stainless steel 304

* Food Grade standard materials



Semi - automatically ice packing system

It is so convenient to pack the ice into the polybag . It looks intelligent and fast control by petal swift .

Ice conveyor ( ice dispenser) to avoid the congelation of the ice cubes .
