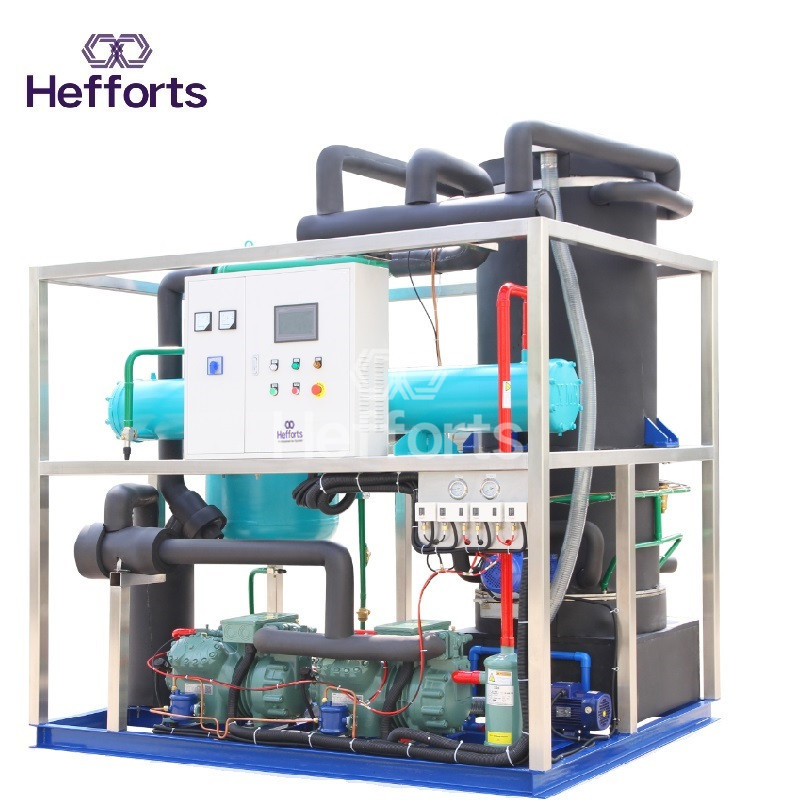

Model # : GB-10T

Description : 10 tons motivated Tube ice machine

Ice Capacity : 10000kgs per 24 hours

Cooling : water cooling

Water temperature : 21℃

Ambient Temperature : 25℃

Condensing Temperature : 40℃

Power Supply : 380V  /50 hz / 3phases

Ice Capacity per 24hours : 10tons

Ice Shape : Tube ice ( Hollow Cylinder )

Ice Size :  28mm diameter * 35mm length

Freezing circle + ice falling : 26minutes or so

Ice per circle : 208kgs

Compressor : Bitzer Germany ( the world first class compressor )

Dimension for the machinery : 2400*1800*2452MM ( L*W*H)

Machine Weight : 2950kgs

Refrigeration : R404A

Power : 60.3KW

Consumption of the electricity : 75-85KWH / 1TON ICE  +

Consumption of the water : 1.2tons / 1TON ICE

-For the tube ice, it is very transparent, sanitary and completely meer the each national standard requirements for edible ice, it uses purified water to make.

-Food grade standard materials, it adopts with SUS304 for the framework and evaporator. Special design water channel and ice outlet, convenient automatic cleaning function, so that the ice is to be sanitary, crystal and transparent.

-‍Automatic operation: the machine adopts with Siemens PLC controller, self-adaptation for ambient temperature; automatic water supplying, ice freezing and ice harvest, which makes the high efficiency of the machine.

-‍Ice bin with screw for semi-packing system

put a bag under the ice outlet, then setp on the pedal switch, ice will fall into the bag. It is convenient.
