Model No :  GB-３０T

Description : 30tons motivated Tube ice machine

Ice Capacity : 30000kgs per 24 hours

Ice per shift : 500kgs / shift

Ice freezing time : 26minutes ( including the ice making and ice dropping )

Ice Shape : Tube ice machine

Ice Size : Diameter 28*35mm

Cooling : water cooling

Compressor : Bitzer Compressor

Refrigrant : R404A

Dimension:  2500mm(L)*1860mm(W)*2895mm(H)

Power supply : 380V/ 50HZ /3P

Water temperature : 21℃

Ambient Temperature : 25℃

Condensing Temperature : 40℃

For the tube ice,usually we do it as hollow one . The tube ice diameter is 28mm or 34mm,the inner diameter can be adjusted according to the ice making time.Usually it is between 5mm~8mm. ( Sold tube ice machine is triple of hollow tube ice machine in the unit price .)

Features :

-For the tube ice, it is very transparent, sanitary and completely meer the each national standard requirements for edible ice, it uses purified water to make. It is widely used in restaurant, bars, drinks shops, chain stores, and any other places where need tube ice to meet every customer's needs.

-Food grade standard materials, it adopts with SUS304 for the framework and evaporator. Special design water channel and ice outlet, convenient automatic cleaning function, so that the ice is to be sanitary, crystal and transparent. The key to make transparent tube ice is to use Purified water.

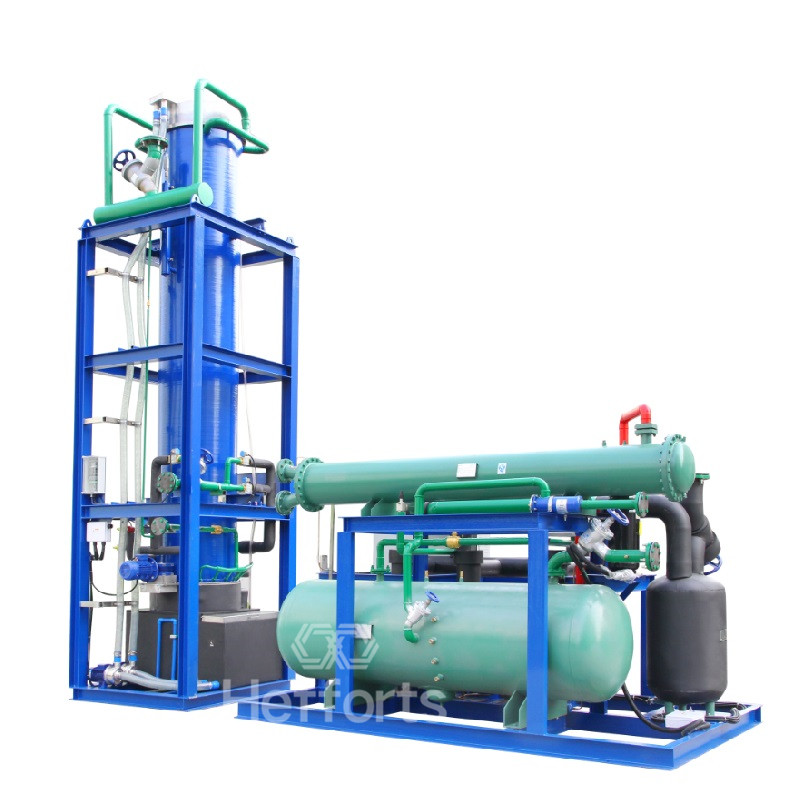

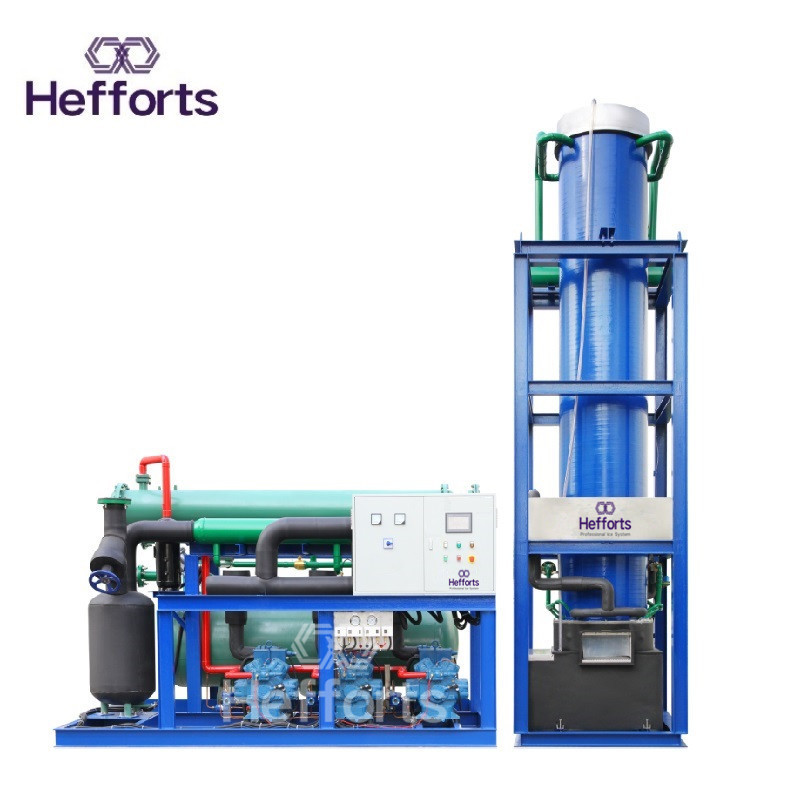

Tube ice machine with cooling system(GB-３０T)

1. H-M interactive intelligent control system with touch-screen

l  Freely set the star and stop time of the machine as your need

l Perfect failure searching system

l Running state played alive in the touch-screen

l Completely self-protecting to enhance the machine life-span

l Fully Europe CE standard and design

l Low consumption and high precision

l The ice thickness is adjustable by the setting of icing time in the touch screen.

2. Freezer : High quality stainless steel for all water and ice contact surface providing corrosion resistance . All of the material meet the HACCP request.

3. Cutter : Stainless steel cutters driven by gear motors are uniquely designed to produce cylindrical ice simply.

4. Safe and convenient

5. Finally shows the ice making system’s stability and high efficiency.

6. Strictly and carefully choice of the components to create the maximum commodity value to the customer by the ideal performance as well as the lowest cost.

7. Precision refrigeration pipe , focus on the details of production details especially adapt the world class welding technology to ensure the refrigerant to make full use .

8. Durability and Stability
