Model # : GB-20T

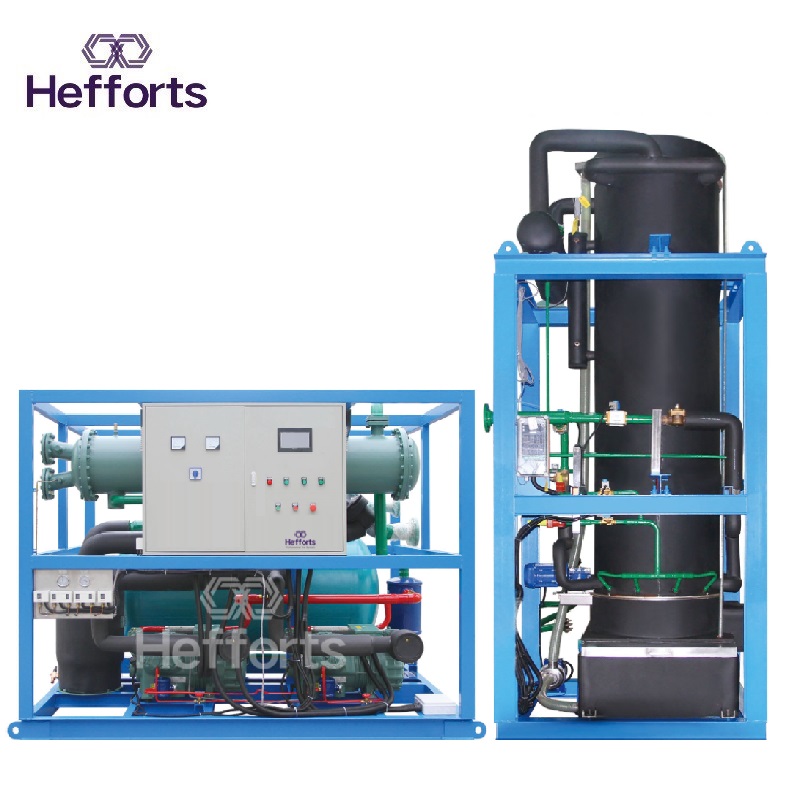

Description : 20 tons motivated Tube ice machine

Ice Capacity : 20000kgs per 24 hours

Cooling : water cooling

Power Supply : 380V  /60 hz / 3phases

Ice Capacity per 24hours : 20tons

Ice Shape : Tube ice ( Hollow Cylinder )

Ice Size :  28mm diameter * 35mm length

Freezing circle + ice falling : 26minutes or so

Ice per circle : 208kgs

Compressor : Bitzer Germany ( the world first class compressor )

Dimension for the machinery : 2600*1800*2652MM ( L*W*H)

Machine Weight : 2950kgs

Refrigeration : R404A

Power : 60.3KW

Consumption of the electricity : 75-85KWH / 1TON ICE  +

Consumption of the water : 1.2tons / 1TON ICE

Water temperature : 21℃

Ambient Temperature : 25℃

Condensing Temperature : 40℃

It is very transparent, sanitary and completely meet the each national standard requirements for edible ice, it uses purified water to make.

-Food grade standard materials, it adopts with SUS304 for the framework and evaporator. Special design water channel and ice outlet, convenient automatic cleaning function.

-‍Automatic operation: the machine adopts with Siemens PLC controller, self-adaptation for ambient temperature; automatic water supplying, ice freezing and ice harvest, which makes the high efficiency of the machine. And it has touch screen for easy and convenient operation.

-How to pack the ice, we have the ice bin with screw for you. We just need to put a bag under the ice outlet, then step on the pedal switch, ice will fall into the bag. It is convenient.

- precise components utilized for the tube ice machine , enhance the performance and stability of the ice machine ,meanwhile , enlarge it's life span .

-  The hole of tube ice machine ( hollow tube ice ) iS about 4-7mm in it .  The melting point is high . Excellent user experience in reality .
